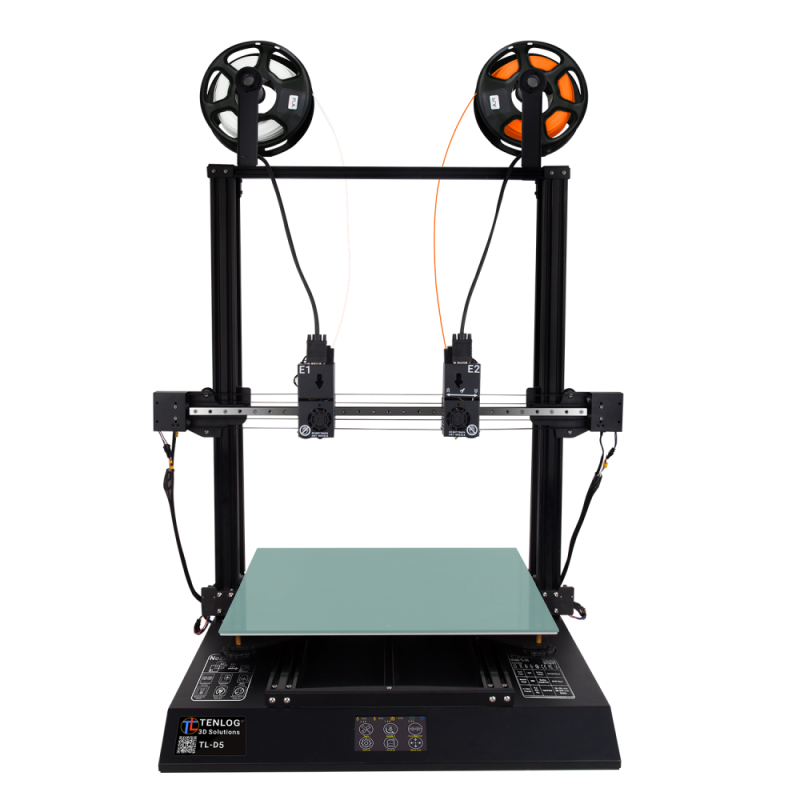

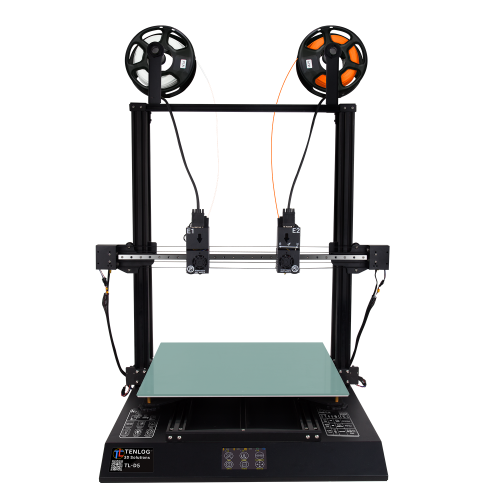

Standard TL-D5 Large Format Dual Extruder 3D Printer
Standard TL-D5 Large Format Dual Extruder 3D Printer
LNL TL-D5 is a large building format dual-extruder 3D Printer. It reaches the maximum limit of the frame printer. Super Large Format building volume is 500*mm*500mm*600mm. It has 2 Z-axis metal levers to reduce a lot of sway and make the printing platform more stable during printing. Compared with the all-metal double nozzle, it brings a super low price. It is a cheap double-nozzle large printer but it runs stably.
Features
1. Big Building Volume
Dual Filament 3D Printer with building volume 500*mm*500mm*600mm, with 2 Z-axis metal support rods, it overcomes the Z-axis sway, provides a good printing platform stability, and is more precise for printing objects.
2. Dual Material Printing
3. Duplication Mode Printing
4. Mirror Mode Printing
5. Independent 350W power supply for hot bed separately, the maximum temperature of the hot bed can reach 70℃
6. All our IDEX 3D Printers have newest function, power loss recovery, filament run-out detection, print from any height.
GENERAL
| Machine Size (WxDxH) | 90cm*95cm*104cm(W*D*H) |
|---|---|
| Nozzle Quantity | 2 |
| Nozzle Diameter | 0.4mm ( Support 0.2mm/0.3mm/0.5mm/0.6mm/0.8mm/1.0mm ) |
| XY-Axis Positioning Accuracy | 0.011mm |
| Z-Axis Positioning Accuracy | 0.0025mm |
| Additive Manufacturing Accuracy | ±0.1mm |
| Layer Thickness | 0.1mm-0.4mm |
| Nozzle Temperature | Max 300 ℃ |
| Heatbed Temperature | MAX 110℃ |
| Printer IO | 16G SD card / USB 2.0 |
| Printing Speed | 10-150 mm/s |
| Supported Filaments | TPU, PVA, PLA, ABS, HIPS, WOOD, PETG, FLEXIBLE |
| Screen | 480*272 Resolution Full Color Capacitive Touch Screen |
| Frame Material | Aluminum Alloy & Sheet Metal |
| Platform Board | Aluminum Alloy & Glass |
| Machine Weight | 28Kg (61.73 lbs) |
| Shipping Box Size | 86cm*90cm*27cm |
| Volumetric(Dimensional) Weight | 48Kg |
ELECTRICAL
| Input Power | 100V-240V@50/60Hz |
|---|---|
| Build Volume (WxDxH) | 500mm*500mm*600mm |
| Output Power | Two Power: 24V, Max 15A*2, One only Supply Hot Bed |
| Voltage Range | 110-120V / 6.8A, 200 - 240V / 3.4A, 50 / 60Hz |
SOFTWARE
| Operative Systems | XP, WIN7/8/10, Linux |
|---|---|
| File Preparation Software | Cura, Repetier-Host |
