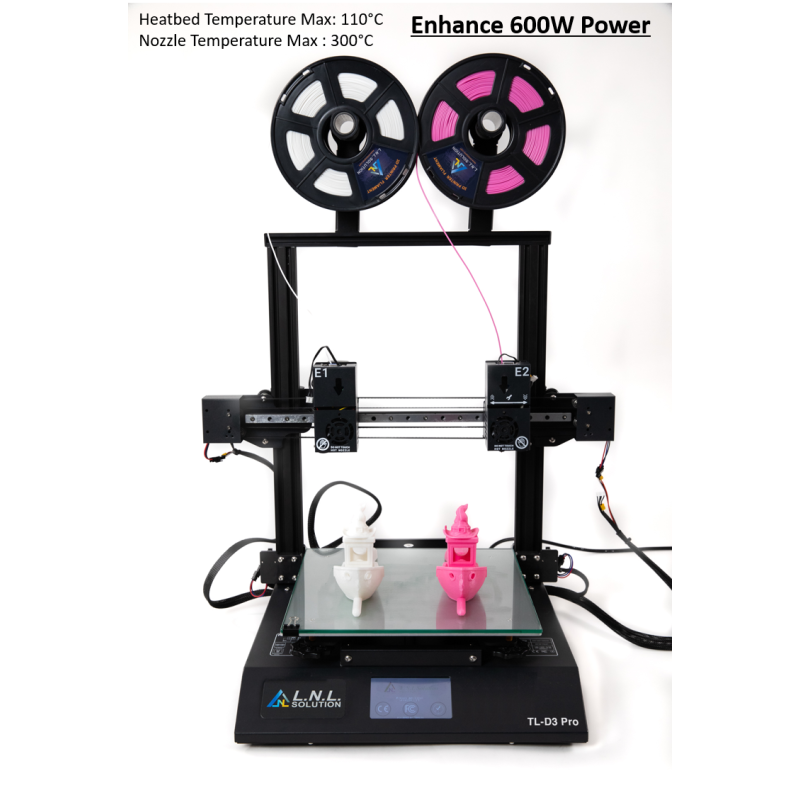

Standard TL-D3 PRO Dual Extruder 3D Printer (Refurbished)

LNL TL-D3 Pro Dual Extruders 3D Printer has Double Nozzles that are independent of each other, allowing it to be printed in Duplication and Mirror mode. You can also choose double different colors or materials to create at the sa…
$389.00
In Stock
Model: 01-TLD3-STD-R
REQUEST A QUOTE
US Based SupportTalk to the LNL 3D team
Quality CheckedProducts reviewed before shipment
Repair SupportService available after purchase
Material GuidanceHelp choosing compatible materials
Motor Controller/DriverTMC2209
Machine Size (WxDxH)23.2 x 20.5 x 29.9 inch / 590 x 520 x 760 mm
Nozzle Quantity2
Nozzle Diameter0.4mm
PRODUCT OVERVIEW

Standard TL-D3 PRO Dual Extruder 3D Printer (Refurbished)

LNL TL-D3 Pro Dual Extruders 3D Printer has Double Nozzles that are independent of each other, allowing it to be printed in Duplication and Mirror mode. You can also choose double different colors or materials to create at the same time or print the soluble support (such as PVA) to precisely implement models that are difficult to lay down. Thanks to the new DMP3d printing system,  LNL TL-D3 Pro gives you better creative space and double productivity!


Main Features


● NEW FEATURE for Filament Run Out Detection and Auto Power off module

   Two Filament Sensors detect the 2-way feed filaments and no longer worry about running out of filaments. When any filament runs out, the nozzle will automatically rise and will not stick to the model.


● NEW 7 pcs TMC2208 or TMC2209 SLIENTSTEPSTICKs Drivers

   The unit will be installed 7 of TMC2208 or TMC2209 SilentStepStick Motor Controller/Drivers. TMC2208 or TMC2209 Driver, works quieter and more stable.


● 4.3 inch touch screen, easy operation
● Print two materials at the same time, such as one nozzle to print PVA ( support ) and another nozzle to print PLA ( model )
● Print a two-color model at the same time, which will not block the nozzle
● Print two identical models at the same time and double the printing effect
● Use TPU material to print two mirror models at the same time, such as a pair of shoes
● Printing can be done using only one nozzle, similar to a single nozzle machine
● Z axis has two photoelectric limit switches to ensure that the nozzle and the right nozzle are of the same height
● Modularization of nozzle suite for easy installation and replacement
● Integrated machine, more beautiful, less space occupied




Standard TL-D3 PRO Dual Extruder 3D Printer (Refurbished)

GENERAL

Motor Controller/DriverTMC2209
Machine Size (WxDxH)23.2 x 20.5 x 29.9 inch / 590 x 520 x 760 mm
Nozzle Quantity2
Nozzle Diameter0.4mm
XY-Axis Positioning Accuracy11 um
Z-Axis Positioning Accuracy2.5 um
Additive Manufacturing Accuracy±0.1mm
Layer Thickness0.1mm-0.4mm
Nozzle TemperatureMax 300℃ when room 20℃
Heatbed TemperatureMAX 110℃ when room 20℃
Printing Speed10-150 mm/s
Supported FilamentsTPU, PVA, PLA, ABS, HIPS, WOOD, PETG, FLEXIBLE
Screen4.3-inch 480*272 Resolution Full Color Capacitive Touch Screen
Frame MaterialAluminum Alloy & Sheet Metal
Platform BoardAluminum Alloy & Glass
LanguageEnglish, Language custom accepted
Machine Weight15.6Kg
Shipping Box Size26 x 23.6 x 10.2 inch / 660 x 600 x 260 mm
Volumetric(Dimensional) Weight21Kg

ELECTRICAL

Filament DetectionYes
Input Power100-240 V AC 50/60 Hz
Build Volume (WxDxH)11.8 x 11.8 x 13.8 inch / 300 x 300 x 350 mm
Output Power24 V, Max 25A, 600W
Filaments Diameter1.75mm
Voltage Range110-120V / 6.8A, 200 - 240V / 3.4A, 50 / 60Hz

SOFTWARE

File Preparation SoftwareCura, Repetier-Host
Support File TypeG-code, STL, jpg, etc.
Supported Operating SystemXP, WIN7/8/10, Linux
