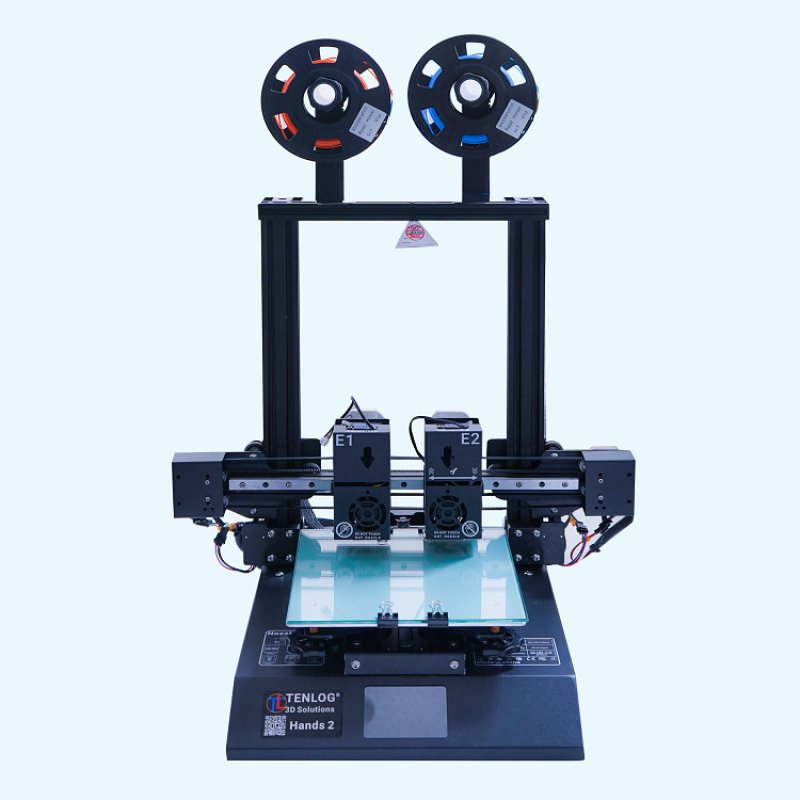

Standard TL-D2 PRO Dual Extruder 3D Printer
Features1. Dual Material PrintingTemperature, Extruder Speed, Printing Speed, and Infill Density are separately set for each nozzle. Even with different diameter nozzles, the PRO-D2 Muiti Extruder 3D Printer can seamlessly print.Smaller bui…
$379.99
In Stock
US Based SupportTalk to the LNL 3D team
Quality CheckedProducts reviewed before shipment
Repair SupportService available after purchase
Material GuidanceHelp choosing compatible materials
Shipping Weight17Kg
Machine Size (WxDxH)49.7cm*43cm*48.4cm
Nozzle Quantity2
Nozzle Diameter0.4mm
PRODUCT OVERVIEW
Standard TL-D2 PRO Dual Extruder 3D Printer
Features
1. Dual Material Printing
Temperature, Extruder Speed, Printing Speed, and Infill Density are separately set for each nozzle. Even with different diameter nozzles, the PRO-D2 Muiti Extruder 3D Printer can seamlessly print.
Smaller building Volume, but work well for dual material 3D Printing and multi color 3D printing. Also support print PVA supports.
2. Duplication Mode Printing
3. Mirror Mode Printing
GENERAL
| Shipping Weight | 17Kg |
|---|---|
| Machine Size (WxDxH) | 49.7cm*43cm*48.4cm |
| Nozzle Quantity | 2 |
| Nozzle Diameter | 0.4mm |
| XY-Axis Positioning Accuracy | 0.011mm |
| Z-Axis Positioning Accuracy | 0.0025mm |
| Additive Manufacturing Accuracy | ±0.1mm |
| Layer Thickness | 0.1mm-0.4mm |
| Nozzle Temperature | Max 250 ℃ |
| Heatbed Temperature | MAX 80℃ |
| Printer IO | 8G SD card/ USB 2.0/ USB 3.0 |
| Printing Speed | 10-150mm/s |
| Supported Filaments | TPU, PVA, PLA, ABS, HIPS, WOOD, PETG, FLEXIBLE |
| Screen | 480*320 Resolution Full Color Capacitive Touch Screen |
| Frame Material | Aluminum Alloy |
| Platform Board | Aluminum Alloy & Glass |
| Language | English, Language custom accepted |
| Machine Weight | 13 Kg |
| Shipping Box Size | 58.5cm*50.5cm*26.5cm |
ELECTRICAL
| Input Power | 100V-240V@50/60Hz |
|---|---|
| Build Volume (WxDxH) | 220mm*220mm*250mm |
| Output Power | 24V, Max 15A |
| Filaments Diameter | 1.75mm |
| Voltage Range | 110-120V / 6.8A, 200 - 240V / 3.4A, 50 / 60Hz |
SOFTWARE
| Operative Systems | XP, WIN7/8/10, Linux |
|---|---|
| File Preparation Software | Cura, Repetier-Host |
| Support File Type | G-code, STL, jpg ect |
