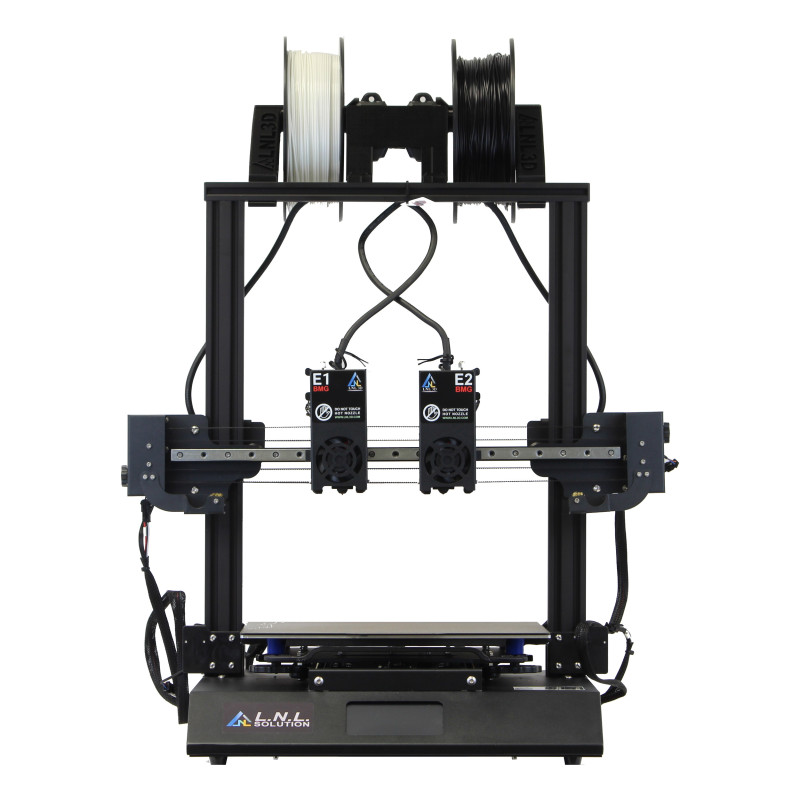

Enhanced TL-D3 PRO V2 Dual Extruder 3D Printer (Refurbished)

Our TL-D3 Pro Dual Extruder 3D Printer has double nozzles that are independent of each other, allowing you to print in dual materials/ duplication/mirror mode. The TL-D3 Pro gives you better creative tools and twice the productivity!1. Dual…
$549.99
In Stock
Model: 01-TLD3-V2-R
REQUEST A QUOTE
US Based SupportTalk to the LNL 3D team
Quality CheckedProducts reviewed before shipment
Repair SupportService available after purchase
Material GuidanceHelp choosing compatible materials
Motor Controller/DriverTMC2209
Machine Size (WxDxH)23.2 x 20.5 x 29.9 inch / 590 x 520 x 760 mm
Nozzle Quantity2
Nozzle Diameter0.4mm
PRODUCT OVERVIEW

Enhanced TL-D3 PRO V2 Dual Extruder 3D Printer (Refurbished)

Our TL-D3 Pro Dual Extruder 3D Printer has double nozzles that are independent of each other, allowing you to print in dual materials/ duplication/mirror mode. The TL-D3 Pro gives you better creative tools and twice the productivity!

1. Dual Material PrintingYou can use two colored filaments to print on the model to obtain two-color models, or use two different filaments to print soluble supports (such as PVA) to accurately achieve difficult-to-place models.

2. Duplication Mode PrintingYou can print two identical models of filaments (or the same or different filaments) of the same color or different colors on the Tenlog 3D printer at the same time, thereby doubling the printing efficiency and saving you time!

3. Mirror Mode PrintingYou can print two symmetrical models of filaments (or the same or different filaments) of the same color or different colors on the Tenlog 3D printer at the same time,the two nozzles are dual-driven at all times for printing, and the two models are immediately aligned with the mirror.

4.Resume Printing FunctionIn the event of an unexpected power outage or surge, the control board will remember the last recorded position of the extruder. After the power is restored, The 3D printer will resume printing from the last recorded position.

5.Filament Runout Detection : When the filament runout detection detects that the filament such as PLA or ABS are used up or broken, the 3D printer will save the information and suspend printing, waiting for the 3D printer to feed the filament again to continue printing.

Enhanced TL-D3 PRO V2 Dual Extruder 3D Printer (Refurbished)

GENERAL

Motor Controller/DriverTMC2209
Machine Size (WxDxH)23.2 x 20.5 x 29.9 inch / 590 x 520 x 760 mm
Nozzle Quantity2
Nozzle Diameter0.4mm
XY-Axis Positioning Accuracy11 um
Z-Axis Positioning Accuracy2.5 um
Additive Manufacturing Accuracy±0.1mm
Layer Thickness0.1mm-0.4mm
Nozzle TemperatureMax 300 ℃
Heatbed TemperatureMAX 110℃
Printing Speed10-150 mm/s
Supported FilamentsTPU, PVA, PLA, ABS, HIPS, WOOD, PETG, FLEXIBLE
Screen4.3-inch 480*272 Resolution Full Color Capacitive Touch Screen
Frame MaterialAluminum Alloy & Sheet Metal
Platform BoardAluminum Alloy & Glass
LanguageEnglish, Language custom accepted
Machine Weight15.6Kg
Shipping Box Size26 x 23.6 x 10.2 inch / 660 x 600 x 260 mm
Volumetric(Dimensional) Weight21Kg

ELECTRICAL

Filament DetectionYes
Input Power100-240 V AC 50/60 Hz
Build Volume (WxDxH)11.8 x 11.8 x 13.8 inch / 300 x 300 x 350 mm
Output Power24 V, Max 25A
Filaments Diameter1.75mm
Voltage Range110-120V / 6.8A, 200 - 240V / 3.4A, 50 / 60Hz

SOFTWARE

File Preparation SoftwareCura, Repetier-Host
Support File TypeG-code, STL, jpg, etc.
Supported Operating SystemXP, WIN7/8/10, Linux
